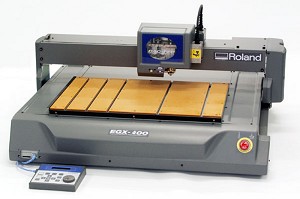

Roland EGX-400 Front View
Roland EGX-400 Front View

Roland EGX- 400 PRO Engraver

MSRP: $10,995.00
No Longer Made, See: MPX-90
Part Number:EGX-400
ADD TO CART: Please Login to your account or click here.

Roland EGX-400

Roland EGX-400 engraving machine has the power, size, and speed required of todays professional engravers. The Roland EGX-400 engraver makes it fast and easy to engrave on a wide variety of materials, including: plastic, acrylic, aluminum, brass, urethane foam, and even wood. In addition to personalized awards, corporate crests, and promotional items, the Roland EGX-400 engraving machine is capable of producing quality indoor and ADA compliant signage. Your signs will benefit from an upscale look while maintaining all ADA signage regulations.

Roland EGX-400 Sample 3

High Speed Engraving Machine

The Roland EGX-400 owes its impressive speed and quality to both servo motors and Feed Forward Processing (FFP). Servo motors produce high levels of torque for smooth, fast engraving; while FFP (look ahead) technology will anticipate the tool path ahead of time creating greater accuracy and energy efficiency. The industry-first combination of FFP, belt drives, and digital AC Servo (DAC) brushless motors on the X, Y and Z axis results in unmatched precision, speed, and reliability. In addition to faster cutting, the high-speed spindle and brushless DC motor produces increased torque with less vibration. Roland EGX-400 engraving machine has an engraving speed of 100mm/sec. and a maximum spindle speed of 30,000 RPM. With these features, its no wonder more professional engravers choose the Roland EGX-400 engraving machine over any other.

Roland EGX-400 Sample 2

Engraving Made Simple

With the Roland EGX-400 engraving machine, you dont even need a computer present to do any engraving. The Roland EGX-400 comes with a removable MMC memory card that can store files programmed on your computer and then be inserted directly into the Roland EGX-400 without the use of a computer. Make your projects mobile or create them from virtually any computer for easy production later. The Roland EGX-400 engraver comes with a hand-held control panel which can be extended away from the machine. The control panel allows you to start and pause a job from a safe distance, and incorporates a jog dial for adjusting the spindle speed or making menu changes on the fly. A separate teaching feature allows you to send operating commands directly from the control panel to the Roland EGX-400 engraver, also without the use of a computer.

Roland EGX-400 Sample 1

Production/Line Engraving

Roland EGX-400 Sample 5 Roland EGX-400 engraving machine comes equip with a large 16 x 12 workable surface area to accommodate multiple items at once. For fast and simple setup, an automatic surface detector determines Z-zero when the tip of the nose guard touches the material surface. The Roland EGX-400 employs a gantry X-axis rail and flat table system which accommodates endless lengths when engraving long boards for larger signs. The T-slot, Bakelite table can be surfaced for ultra-precise engraving and can be removed easily when using jigs, vises, or larger materials. If you really want to boost up your production, you can connect multiple Roland EGX-400 engravers together with Rolands sequence I/O controller. Production line engraving has never been easier.

Bundled Engraving Software

Roland EGX-400 engraving machine includes a complete suite of engraving software at no additional cost. Dr. Engrave uses TrueType fonts and includes an automatic layout function for importing Excel and CSV database files for fast engraving of variable data projects such as serial numbers and nameplates. 3D Engrave allows you to produce 3D reliefs while MODELA Player CAM software reads DXF and STL files created with popular 3D CAD programs. The Roland EGX-400 engraver even brings Virtual MODELA4, which simulates finished previews on your computer screen before production begins. The luxury of owning this software prevents unexpected surprises which can end up costing you time and money. There is no doubt that the Roland EGX-400 engraving machine is ahead of its time.

Roland Reliability

Roland Certified ISO Logo
Roland engravers have earned a worldwide reputation for reliable performance and outstanding results. Like all Roland products, they come with an international ISO certification. This signals Rolands commitment to offering top quality products backed up with first-rate customer service and a wide variety of supplies and accessories.

5 Stars
We really like the Roland Engraver. We are still learning how to run the Engravelab9. Find something new everyday. The service that we received from your company was excellent. Thanks for everything. Margaret Stockburger Affordable Trophies & Awards 423-605-1415
Did you find this helpful?  1 of 1 Found Helpful
Reviewed by:  from Affordable Trophies & Awards. on 3/6/2013
5 Stars
Project Engineer
This engraver produces very nice labels and can be set up for a myriad of materials, fonts, speeds, and label sizes. The biggest drawback is the initial setup. Tech support was very helpful and set the whole thing up remotely for me. If I had to do it myself I would never haven gotten it figured out. I recommend this product for anyone needing to make large quantities of labels. Vacuum does not pick up all of the debris but cuts down on the mess considerably.
Did you find this helpful?  1 of 1 Found Helpful
Reviewed by:  from Eunice, NM. on 5/31/2012
